FY series liqud underside pump

Speciality

A vertical submerged pump with elegant profile,directly mounted at the reservoir of medium to be delivered,with no additional floor space required to economize infrastructural construction investment.
cancellation of mechanical seal,a solution to the headache of frequent servicing of other submerged pumps due to the easily worn-out mechanical seal,a saver of operational cost and a promotor of work efficiency.
distinctive centrifugal impeller to handle clean medium not containing solid particles,featured by little vibration,low noise and high efficiency,open impeller to handle unclean liquid containing solid particles and short fiber,featured by stable operation and non-clogging.

Introduction

FY series submerged pump is an updated design based upon the conventional anti-corrosion pump,processed with the advanced technology in like products abroad,Mechanical seal that is commonly applied by other submerged pumps is not used in this pump with the distinctive impeller for high efficiency,energy conservation and long service life,this type of pumps are widely used in the industries of petroleum,chemical,pharmaceutical,papermaking metallurgy and etc,

Useful

A vertical submerged pump with elegant profile,directly moumted at the reservoir of medium to be deliverd,with no additional floor space required to economize in frastructural construction investment.
Cancellation of mechanical seal,a solution to the headache of frequent servicing of other submerged pumps due to the easilyworn-out mechanical seal,a saver of operational cost and promotor of work efficiency.
Distinctive centrifugal impeller to handle clean medium not containing solid particles featured by little vebration,low noise and high efficiency,open impeller to handle unclean liquid containing solid particles and short featured by stable operation and non-clogging

Condition

Temperature of the medium to be delivered:-20-140℃
For cast iron pumps,the PH value of medium ranging witthin 5-9
For pump with open impeller,the diameter of solid pqrticle in the liquid to be delivered shoule better not exceed the 30%of the suction diameter of the pump

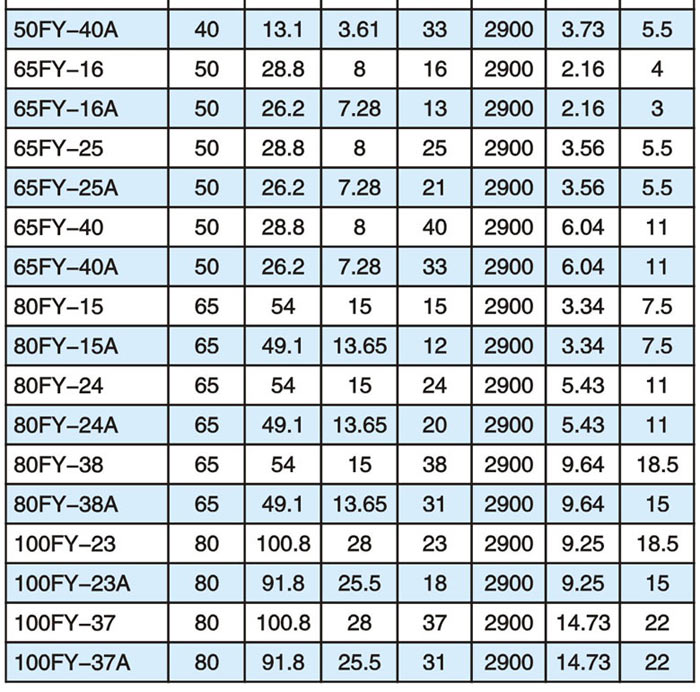

Type

65FY-16AK
65:suction diameter of pump
FY:Code of serials
16:Head
A:code of impeller cutting
K:Open type of impeller,closed
