FB、AFB chemical pump

   FB pump is of single-stage single suction anticorrosive centrifugal pump.It integrates the advantage of kinds of pumps in the 1990’s and adopts the advanced hydraulic model, novel structure and high strength of sigle -& two-terminal face mechanical seal,with the features of high efficiency and energy save,compact structure,stable performance and reliable operation etc.

  The pump serves as transportation of the corrosive liquid without solid granule.The medium temperature is between-20and 105℃.The additional measurements in mechanical seal and cooling measurement can ensure transportation of higher temperature of medium .The inlet pressure of pump is no more than 0.2Mpa. It is widely used at the industries such as petroleum, chemistr-y,metallurgy,syn-thetic fiber,pharmacy,foodstuff and brewage and also services at the industrial and mineral enterprise and city water supply and drainage.

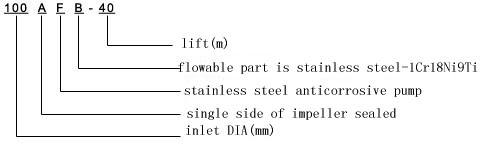

Model explanation(100AFB-40)


Flow rang ( Q )

3.6m3/h —226m 3/h

Heat

10M---70M

Inlet diameter

25mm---150mm

Max working pressure

1.6Mpa

Suitable temperature

-20 ---105

Design and making

GB or according to user`s reqest

Suitable media

Suphric aicd,nitric aicd,hydrochloric aicd,phosphoric aicd for organic acid and inorganic and concention,all kinds of salt solution,sodium hydroxide, sodium carbonate,ect.
